SDK Development
SDK Overview

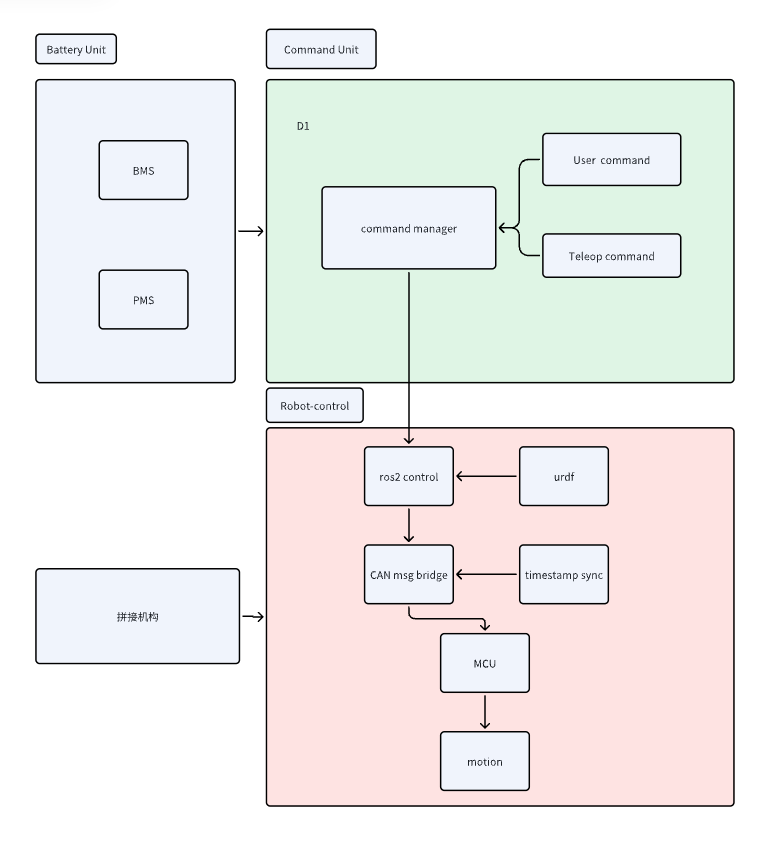

System Architecture Diagram
D1 provides a ROS2 SDK, and the main data interaction uses two modes: Publish/Subscribe and Request/Response.
Publish/Subscribe: The receiver subscribes to a message, and the sender publishes messages according to the subscription list. Mainly used for medium/high frequency or continuous data interaction.
Request/Response: A query–response mode, where data retrieval or operations are performed via requests. Used for low-frequency or mode-switch operations.
For details, seeQuick Start。
Lower-Level Control Example
Application Example
This example shows how to use the tita_robot package to control robot joints and obtain battery information.
Use only on an actual robot.
#include <time.h>
#include <algorithm>
#include <chrono>
#include <iostream>
#include <map>
#include <memory>
#include <string>
#include <thread>
#include "tita_robot/tita_robot.hpp"
tita_robot robot(8, 2, "can0");
void test_read()
{
while (1)
{
std::cout << "=================================" << std::endl;
auto q = robot.get_joint_q();
auto v = robot.get_joint_v();
auto t = robot.get_joint_t();
auto status = robot.get_joint_status();
auto quat = robot.get_imu_quaternion();
auto accl = robot.get_imu_acceleration();
auto gyro = robot.get_imu_angular_velocity();
for (size_t i = 0; i < q.size(); i++) {
std::cout << "q[" << i << "] = " << q[i] << "\tv[" << i << "] = " << v[i] << "\tt[" << i
<< "] = " << t[i] << std::endl;
}
for (size_t i = 0; i < status.size(); i++) {
std::cout << "status[" << i << "] = " << status[i] << " ";
}
std::cout << std::endl;
std::cout << "quat = " << quat[0] << " " << quat[1] << " " << quat[2] << " " << quat[3]
<< std::endl;
std::cout << "accl = " << accl[0] << " " << accl[1] << " " << accl[2] << std::endl;
std::cout << "gyro = " << gyro[0] << " " << gyro[1] << " " << gyro[2] << std::endl;
sleep(1);
}
}
void test_write()
{
while (1) {
std::cout << "=================================" << std::endl;
std::vector<double> t = {0.0, 0.0, 0.0, 0.5, 0.0, 0.0, 0.0, 0.5};
robot.set_target_joint_t(t);
sleep(1);
}
}
int main(int argc, char * argv[])
{
(void)argc;
(void)argv;
test_read();
// test_write();
return 0;
}
Create the CMakeLists.txt file:
cmake_minimum_required(VERSION 3.10)
project(lower_sdk_example)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)
add_compile_options(-Wall -Wextra -Wpedantic)
set(LOWER_SDK "/opt/d1_ros2/") #tita_robot 安装路径
include_directories(
${LOWER_SDK}/include
)
link_directories(
${LOWER_SDK}/lib
)
add_executable(lower_sdk_example lower_sdk_example.cpp)
target_link_libraries(lower_sdk_example
tita_robot
pthread
)
Motion Control Interfaces
(1) Set motor torque
/**
* @brief Set the target joint feed-forward torques.
* @param t the target joint feed-forward torques.
* @return return true if the target is set successfully.
*/
bool set_target_joint_t(const std::vector<double> & t);
(2) Set MIT PD control
/**
* @brief MIT control method. Set the target joint positions, velocities, kp, kd and feed-forward torques of the
motors.
* @param q the target joint positions in radians.
* @param v the target joint velocities in radians per second.
* @param kp the target joint proportional gains.
* @param kd the target joint derivative gains.
* @param t the target joint feed-forward torques.
*
* @return return true if the target is set successfully
*/
bool set_target_joint_mit(
const std::vector<double> & q, const std::vector<double> & v, const std::vector<double> & kp,
const std::vector<double> & kd, const std::vector<double> & t);
Data Reading Interfaces
The following interfaces are accessed by loading the dynamic library /opt/d1_ros2/lib/tita_robot.so, communicating via CANFD.
Refer to the above CMakeLists.txt for linking.
Battery Status Query Interfaces
Used to obtain real-time battery parameters for power management and low-battery warnings.
/**
* @brief Get the current battery is connected.
* @param index: the index of battery.
* @return bool: if battery is connected, return true.
*/
bool get_battery_is_connected(int index) const;
/**
* @brief Get the current battery voltage.
* @param index: the index of battery.
* @return float: current battery voltage in volts.
*/
float get_battery_voltage(int index) const;
/**
* @brief Get the current battery temperature.
* @param index: the index of battery.
* @return float: current battery temperature in degrees Celsius.
*/
float get_battery_temperature(int index) const;
/**
* @brief Get the current battery current.
* @param index: the index of battery.
* @return float: current battery current in amperes.
*/
float get_battery_current(int index) const;
/**
* @brief Get the current battery percentage.
* @param index: the index of battery.
* @return float: current battery percentage in percent.
*/
float get_battery_percentage(int index) const;
/**
* @brief Get the current battery cell voltage.
* @param index: the index of battery.
* @return std::vector<float>: current battery cell voltage in volts.
*/
std::vector<float> get_battery_cell_voltage(int index) const;
Robot Core State Interfaces
These interfaces provide essential data for motion control and state estimation, covering IMU, motor, and joint modules.
/**
* @brief Get the current states update timeout.
* @return bool: if current states not update, return true.
*/
bool imu_data_timeout() const;
/**
* @brief Get the current states update timeout.
* @return bool: if current states not update, return true.
*/
bool motors_data_timeout() const;
/**
* @brief Get the current joint positions in joint space.
* @return std::vector<double>: current joint positions in radians.
*/
std::vector<double> get_joint_q() const;
/**
* @brief Get the current joint velocities in joint space.
* @return std::vector<double>: current joint velocities in radians per second.
*/
std::vector<double> get_joint_v() const;
/**
* @brief Get the current joint torques in joint space.
* @return std::vector<double>: current joint torques in Newton meters.
*/
std::vector<double> get_joint_t() const;
/**
* @brief Get the current joint status.
* @note Joints status now is in bool value, true means the joint is online(TODO).
* @return std::vector<uint16_t>: current joint status.
*/
std::vector<uint16_t> get_joint_status() const;
/**
* @brief Get the current imu quaternion of mcu.
* @note Quaternion sequence is x y z w.
* @return std::array<double, 4>: current quaternion.
*/
std::array<double, 4> get_imu_quaternion() const; // x y z w
/**
* @brief Get the current imu acceleration of mcu.
* @return std::array<double, 3>: current acceleration.
*/
std::array<double, 3> get_imu_acceleration() const;
/**
* @brief Get the current imu angular velocity of mcu.
* @return std::array<double, 3>: current angular velocity.
*/
std::array<double, 3> get_imu_angular_velocity() const;
/**
* @brief Set the target joint feed-forward torques.
* @param t the target joint feed-forward torques.
* @return return true if the target is set successfully.
*/
bool set_target_joint_t(const std::vector<double> & t);
/**
* @brief MIT control method. Set the target joint positions, velocities, kp, kd and feed-forward torques of the
motors.
* @param q the target joint positions in radians.
* @param v the target joint velocities in radians per second.
* @param kp the target joint proportional gains.
* @param kd the target joint derivative gains.
* @param t the target joint feed-forward torques.
*
* @return return true if the target is set successfully
*/
bool set_target_joint_mit(
const std::vector<double> & q, const std::vector<double> & v, const std::vector<double> & kp,
const std::vector<double> & kd, const std::vector<double> & t);
